Heat Tool Specifications

SAE METRIC

SAE

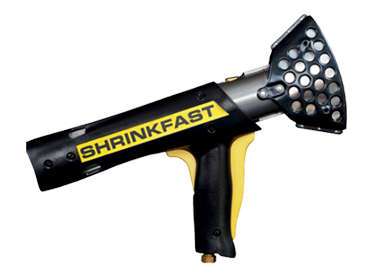

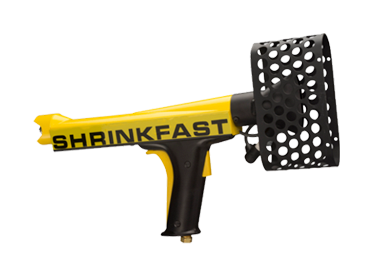

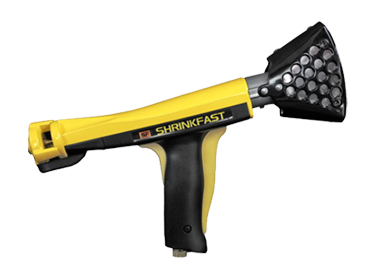

	Model 998	Model 975	Model MZ
Feature
Country Manufactured	Newport, New Hampshire USA	Newport, New Hampshire USA	Newport, New Hampshire USA
Heat Tool Weight Pounds	2.2 lbs.	3.3 lbs.	1.75 lbs.
Complete Kit Weight Pounds	13 lbs.	13 lbs.	11 lbs.
Heat Tool Length Inches	14"	17"	13.5"
Power @ 22 PSI Factory Setting	172,500 BTU	125,000 BTU	50,000 BTU
Rated Capacity Factory Setting	51 KW	24 KW	15 KW
Recommended Pressure Range	20 – 30 PSI	20 – 30 PSI	20 – 30 PSI
Temperature – 6" From Flame	1120 °F	675 °F	730 °F
Fuel Consumption lbs./hr.	8 lbs. Per Hour	5.7 lbs. Per Hour	3 lbs. Per Hour
Air Consumption	30 CFM	21 CFM	15 CFM
CO/CO2 Emission %	.015 Co/Co2	.017 Co/Co2	.015 Co/Co2
Noise Level	88 dbA	88 dbA	80 dbA
Extensions Available	2', 4', 6'	2', 4', 6'	3' Only
Energy Source	Propane or Natural Gas	Propane or Natural Gas	Propane Only
Safety Certifications	UL, CUL, CE	UL	UL, CUL, CE

METRIC

	Model 998	Model 975	Model MZ
Feature
Country Manufactured	Newport, New Hampshire USA	Newport, New Hampshire USA	Newport, New Hampshire USA
Heat Tool Weight	1.0 kg	1.50 kg	0.80 kg
Complete Kit Weight	5.9 kg	5.9 kg	5.0 kg
Heat Tool Length	36 cm	43 cm	34 cm
Power @ 1.5 Bar Factory Setting	172,500 BTU	125,000 BTU	50,000 BTU
Rated Capacity Factory Setting	51 KW	24 KW	15 KW
Recommended Pressure Range	1.4 – 2.0 Bar	1.4 – 2.0 Bar	1.4 – 2.0 Bar
Temperature – 15 cm from Flame	604 °C	357 °C	388 °C
Fuel Consumption	3.62 kg Per Hour	2.59 kg Per Hour	1.36 kg Per Hour
Air Consumption	30 CFM	21 CFM	15 CFM
CO/CO2 Emission % @ 1.5 Bar	.015 Co/Co2	.017 Co/Co2	.015 Co/Co2
Noise Level	88 dbA	88 dbA	80 dbA
Extensions Available	61 cm, 122 cm, 183 cm	61 cm, 122 cm, 183 cm	91 cm Only (In Process)
Energy Source	Propane or Natural Gas	Propane or Natural Gas	Propane Only
Safety Certifications	UL, CUL, CE	UL	UL, CUL, CE
